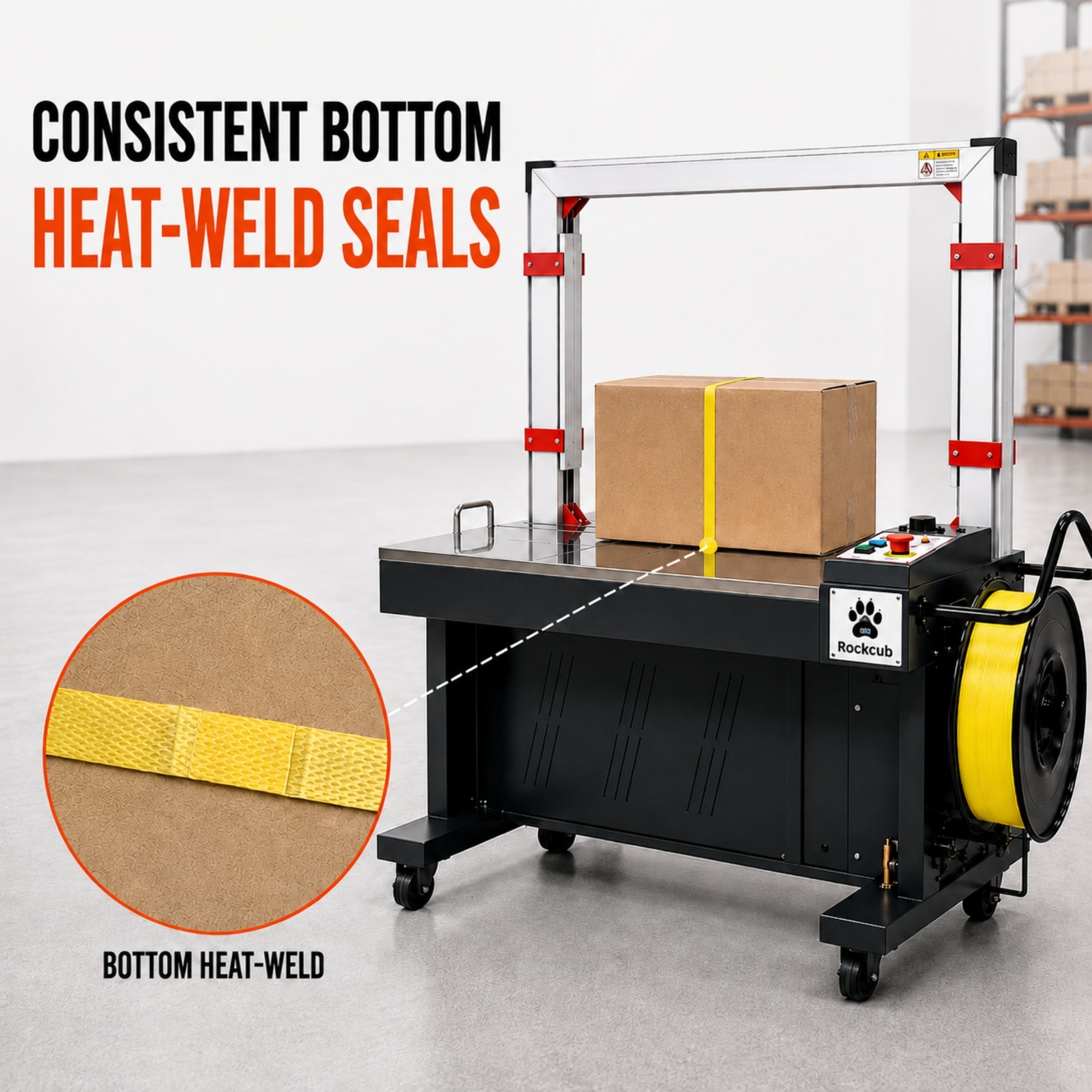

Infographic: the Rockcub RCV9 applying a consistent bottom heat-weld seal to a strapped carton, with a close-up of the welded strap joint

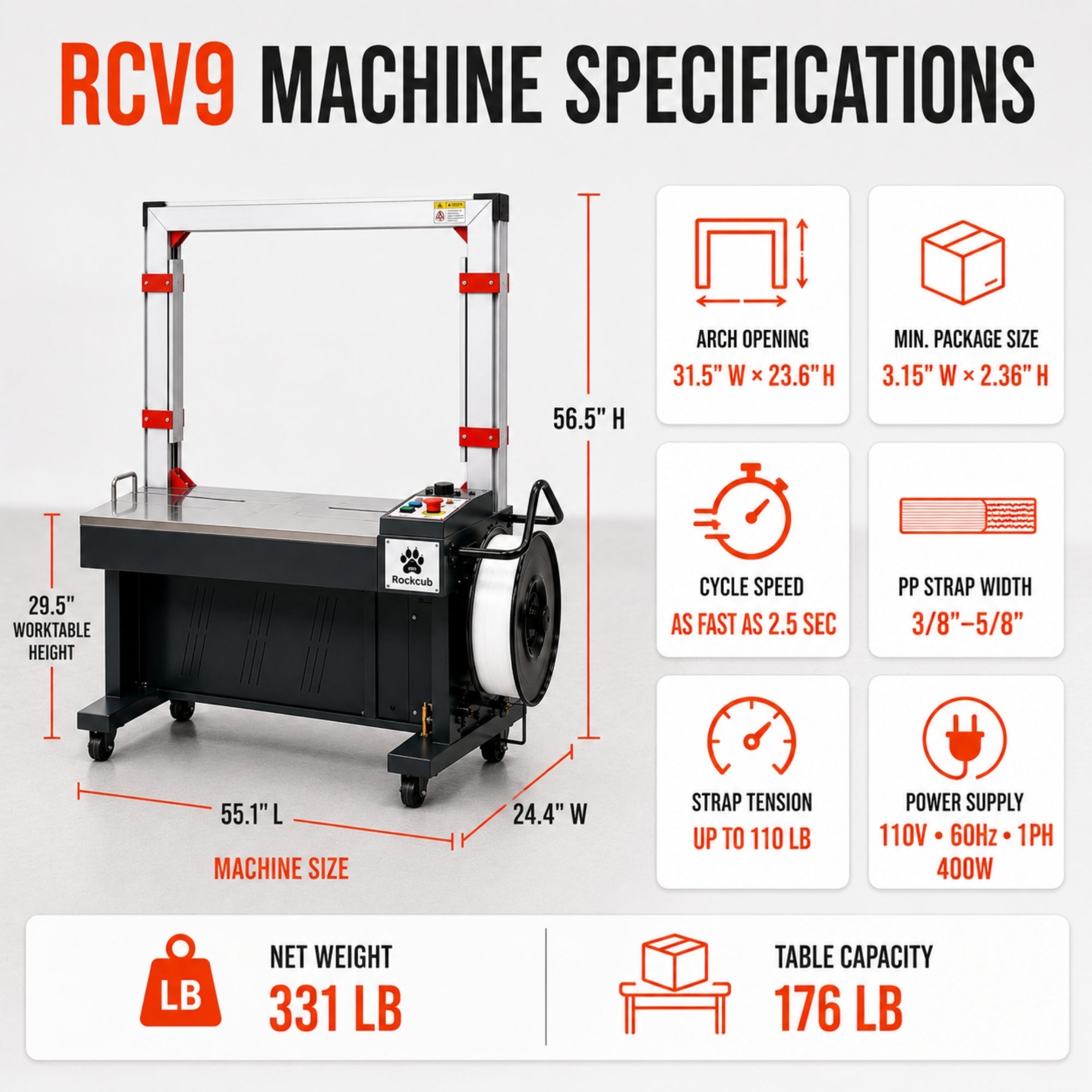

Infographic: Rockcub RCV9 machine specifications — 31.5in x 23.6in arch opening, 2.5 second cycle, 3/8in to 5/8in PP strap, up to 110 lb tension, 110V 60Hz 400W, 331 lb net weight
ROCKCUB RCV9 High-Speed Automatic Arch Strapping Machine — view 2
ROCKCUB RCV9 High-Speed Automatic Arch Strapping Machine — view 3
ROCKCUB RCV9 High-Speed Automatic Arch Strapping Machine — view 4
ROCKCUB RCV9 High-Speed Automatic Arch Strapping Machine — view 5
ROCKCUB RCV9 High-Speed Automatic Arch Strapping Machine — view 6
ROCKCUB RCV9 High-Speed Automatic Arch Strapping Machine — view 7
ROCKCUB RCV9 High-Speed Automatic Arch Strapping Machine — view 8
Infographic: U.S.-based technical and parts support for the Rockcub RCV9, with a support agent at a workstation and a 1-year whole-machine warranty seal
Infographic: the Rockcub RCV9 applying a consistent bottom heat-weld seal to a strapped carton, with a close-up of the welded strap joint
Infographic: Rockcub RCV9 machine specifications — 31.5in x 23.6in arch opening, 2.5 second cycle, 3/8in to 5/8in PP strap, up to 110 lb tension, 110V 60Hz 400W, 331 lb net weight

Rockcub RCV9 High-Speed Automatic Arch Strapping Machine

SKU: RCV9
(0)
24 Cycles/Min · PP Straps 3/8"–5/8" · Automatic Arch · 110V
$4,998.95
-9% $5,498.95 $4,998.95
Only 4 left
Low stock

Buying several units, shipping outside the lower 48, or paying by purchase order? Tell us what you need and we reply within one business day with pricing, lead time and delivery.

Parts you can actually get

Replacement batteries, tension wheels and wear parts are stocked in California for the machines we sell. If the part you need is not listed, contact support and we will source it.

Got questions?

Feel free to get in touch

Ask an expert!

Email +1 (562) 203-3004

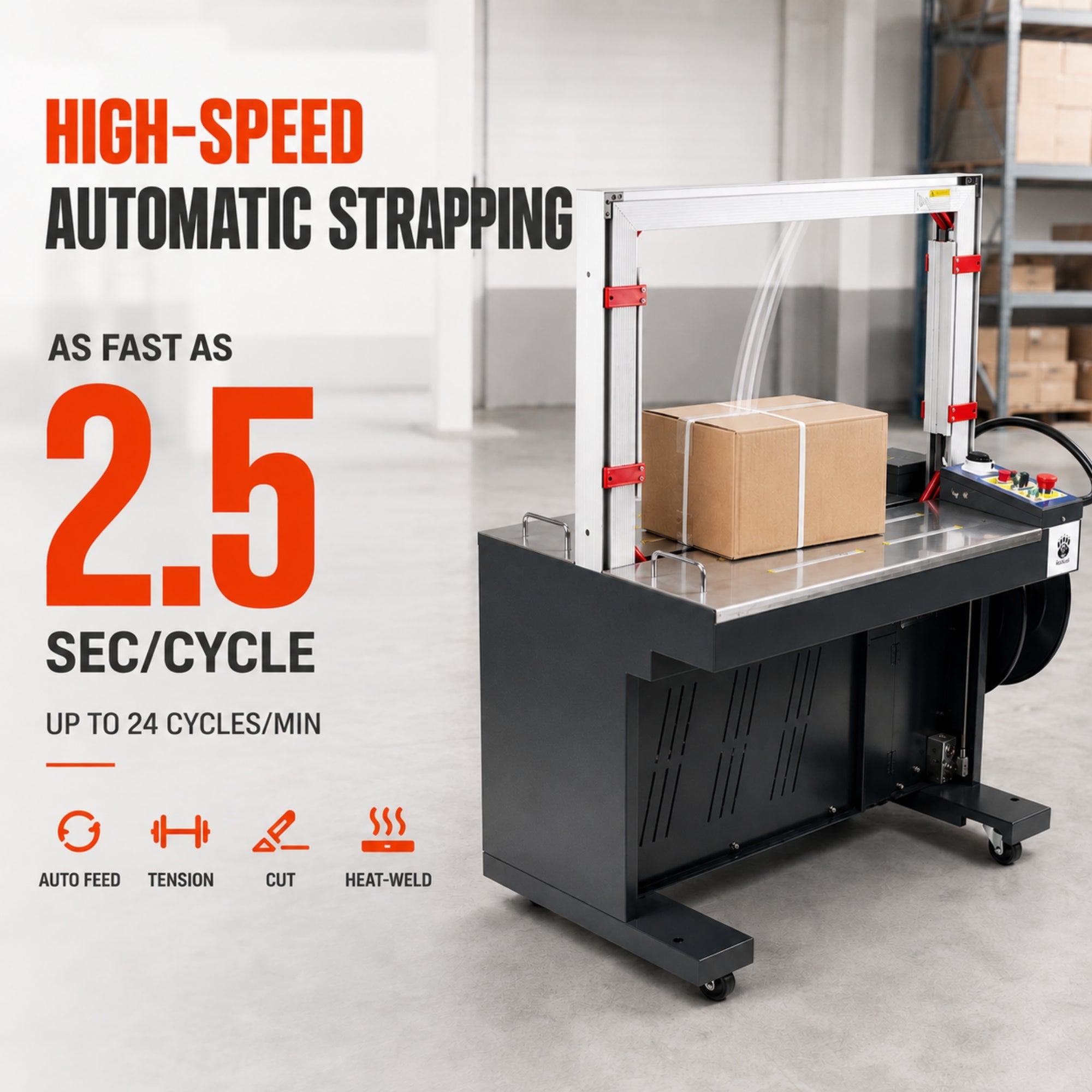

  • HIGH-SPEED OPERATION — Completes a strapping cycle in as little as 2.5 seconds, delivering up to approximately 24 cycles per minute.

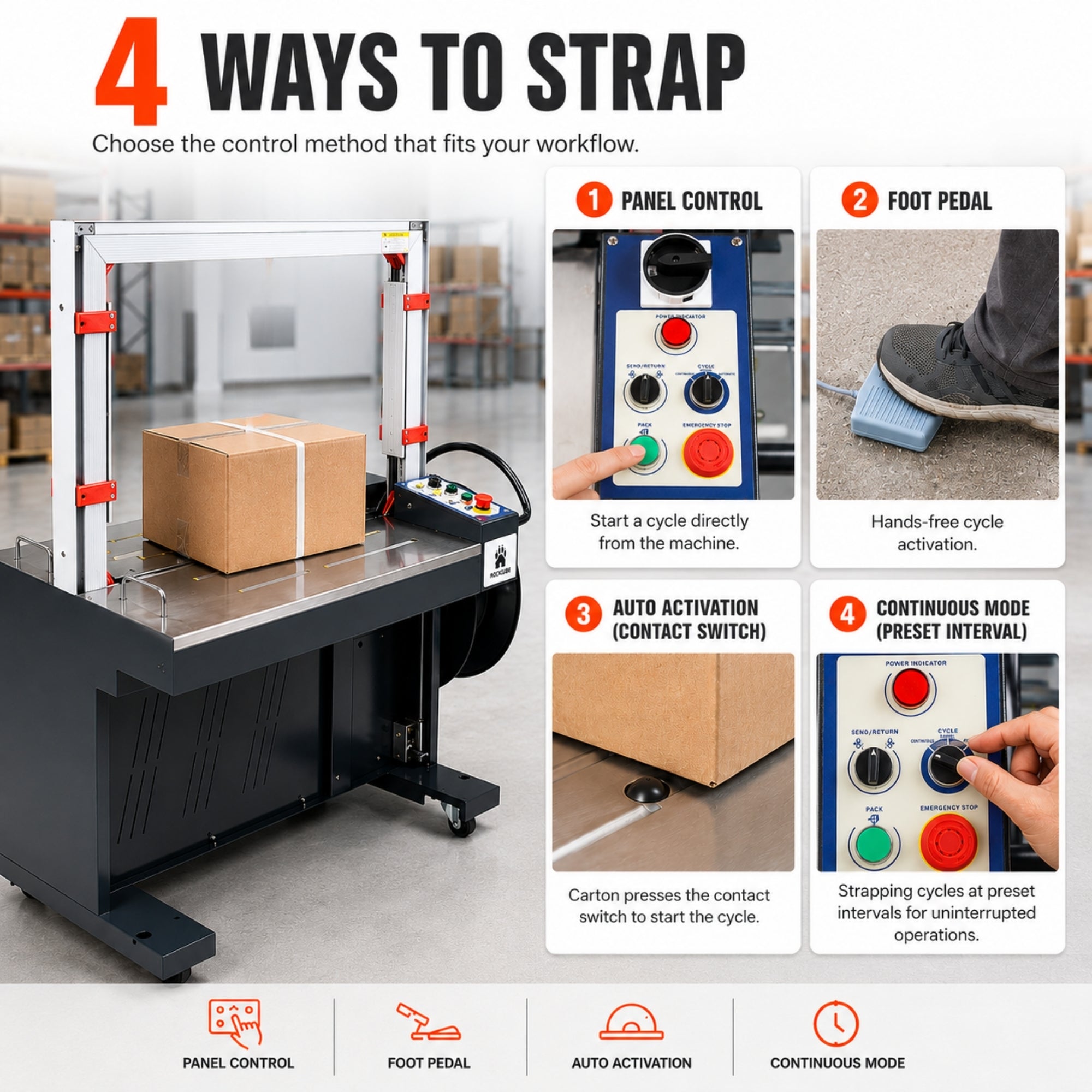

  • FOUR WAYS TO STRAP — Start a cycle from the control panel, use the included foot pedal, activate automatic operation through the black contact-activated tabletop ball switch, or select continuous mode for repeated cycles at preset intervals.

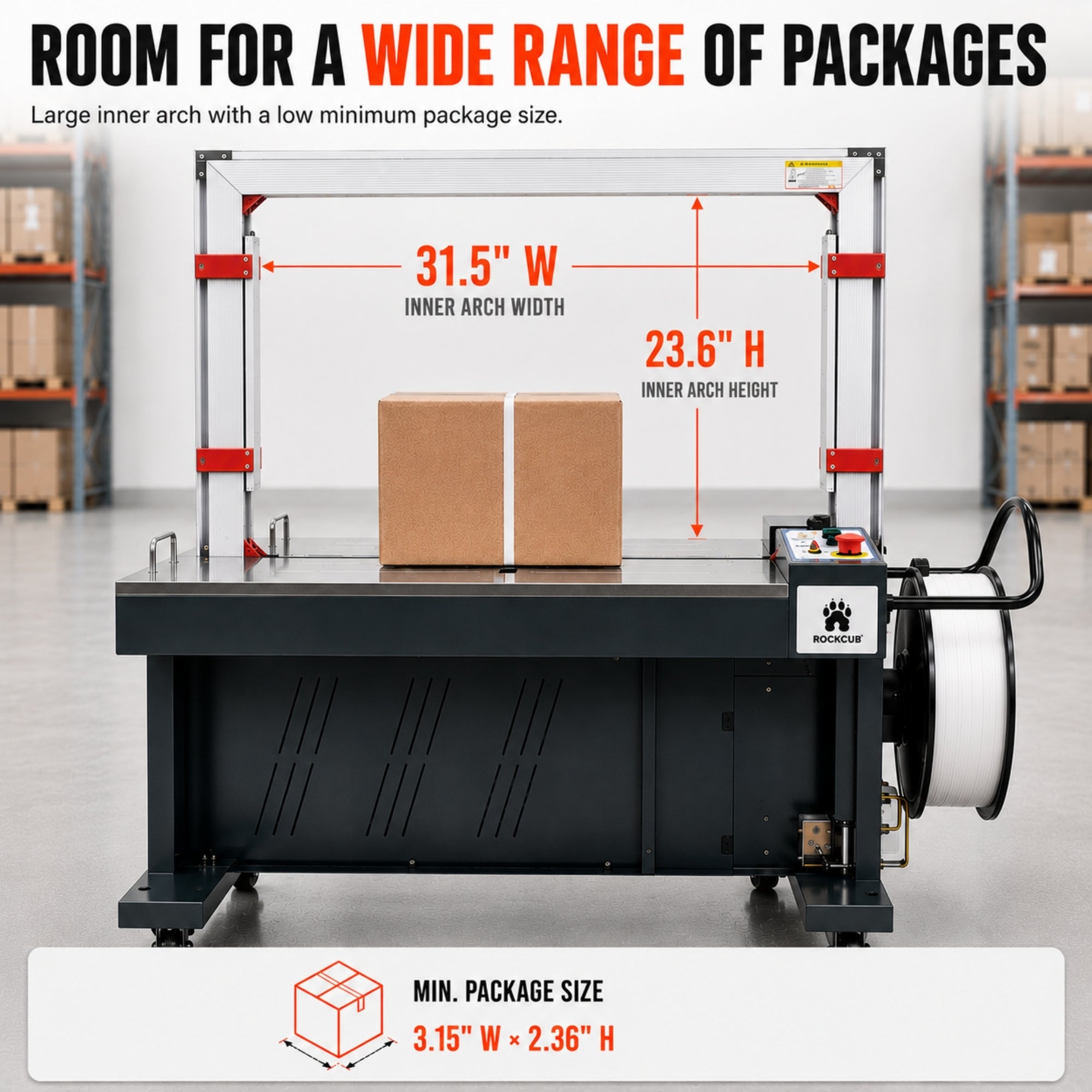

  • LARGE INNER ARCH — The 31.5" W × 23.6" H inner arch accommodates a wide range of cartons, bundles, printed materials and corrugated packages.

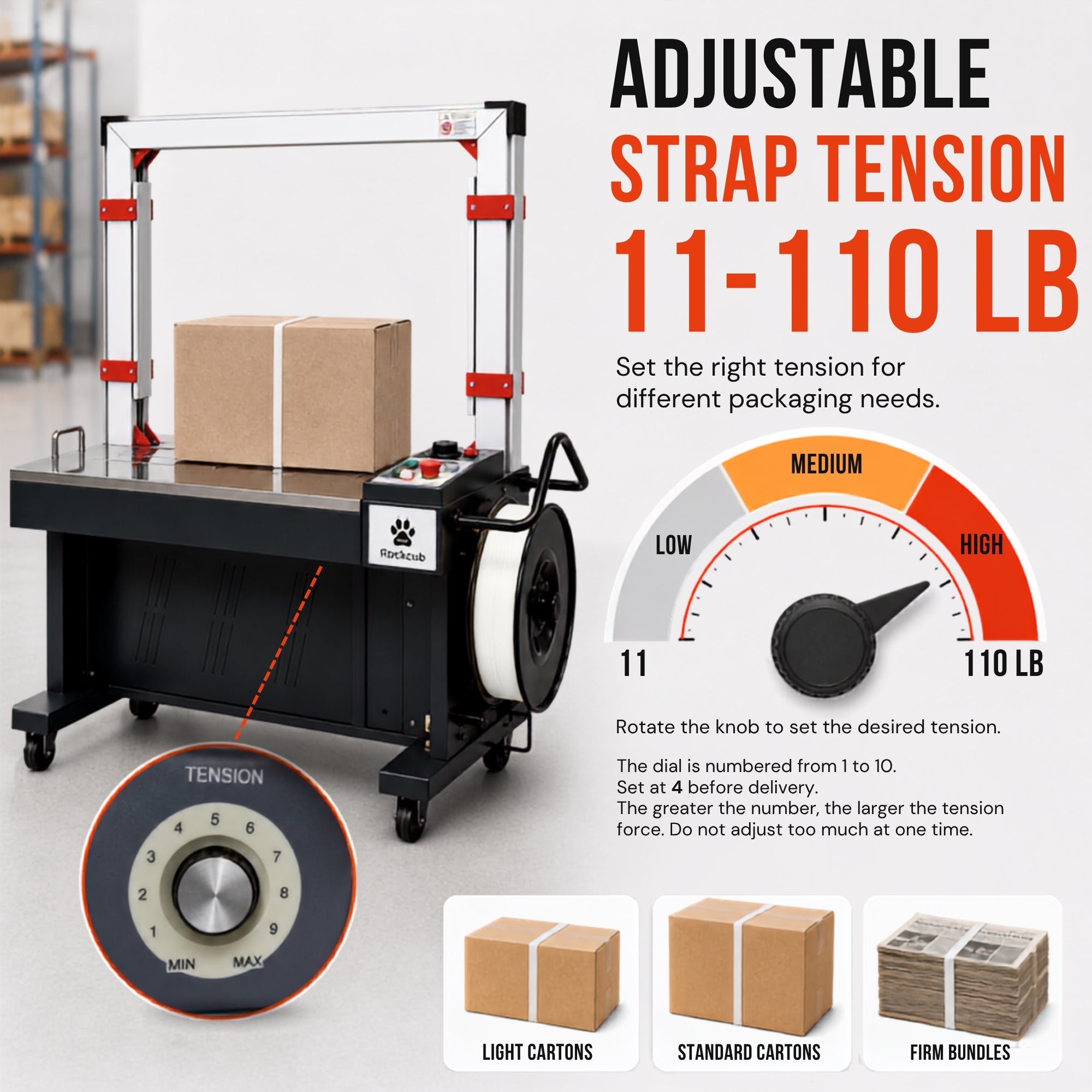

  • ADJUSTABLE STRAP TENSION — Set the tension from 11 to 110 lbs to suit packages with different sizes and firmness levels.

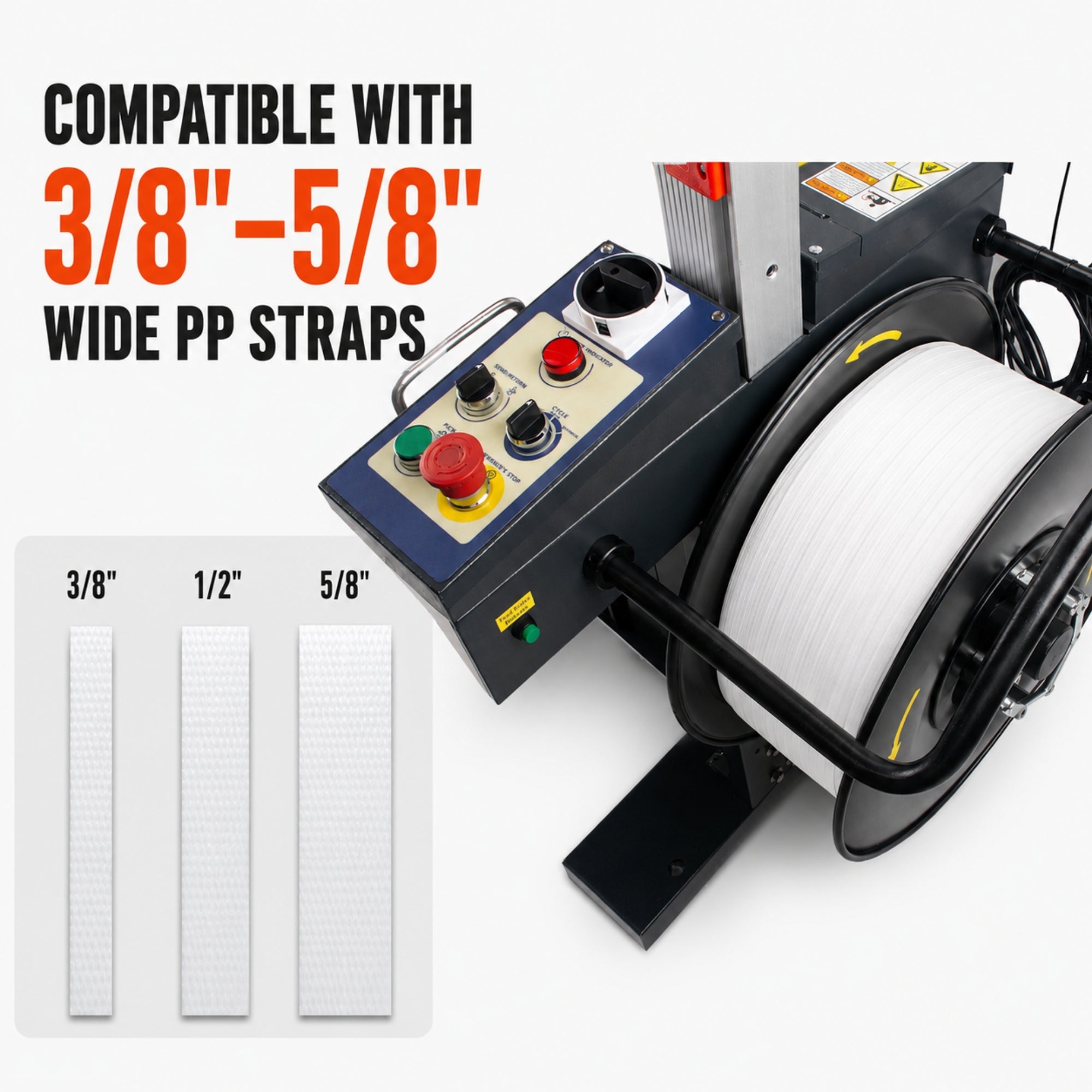

  • COMMON PP STRAP COMPATIBILITY — Works with 3/8"-5/8" wide and 0.022"-0.039" thick PP strap. Supported widths can be used without changing machine parts.
  • STANDARD 110V POWER — Runs from an ordinary single-phase 110V outlet at 400W. No dedicated circuit, transformer or electrician needed to get it running.
  • U.S.-BASED SUPPORT — Local technical assistance, timely troubleshooting responses and local spare-parts support help reduce the risks associated with purchasing commercial packaging equipment.

Specifications

Model Rockcub RCV9 — automatic arch strapping machine
Strapping speed ≤ 2.5 seconds per cycle (up to about 24 cycles per minute)
Arch size (W × H) 31.5" × 23.6" (800 × 600 mm) — standard arch
Strap Polypropylene (PP), 3/8"–5/8" (9–15 mm) wide, 0.022"–0.039" (0.55–1.0 mm) thick
Strap coil 8" (200–210 mm) core, up to 17.7" (450 mm) outside diameter, 6.7"–7.5" (170–190 mm) face width
Tension 11–110 lbs (5–50 kg), adjustable
Seal Heat weld, bottom seal — no metal seals or clips
Package size Min. 3.1" W × 2.4" H (80 × 60 mm); max. limited by the arch; max. load 176 lbs (80 kg) per package
Machine dimensions (L × W × H) 55.1" × 24.4" × 56.5" (1400 × 620 × 1435 mm)
Worktable height 29.5" (750 mm)
Net weight 331 lbs (150 kg)
Shipping crate 59" × 27.6" × 63" (1500 × 700 × 1600 mm) — ships by freight, liftgate included
Power Single-phase 110V, 60Hz, 400W — standard North American outlet, no dedicated circuit or electrical work required
Noise ≤ 75 dB(A)
Operating environment -4°F to 104°F (-20°C to 40°C), ≤ 98% humidity, away from open flame and corrosive substances

Site Requirements — Please Confirm Before Ordering

Delivery Ships via freight (~150 kg / 330 lbs net). We arrange liftgate delivery at no extra cost, so no loading dock or forklift is required on your end — the driver lowers the machine to ground level for you.
Floor space needed Min. 2,000mm × 1,500mm (about 6.6' × 4.9'), on a flat, dry, hard floor.

Buying for a Production Line? Get a Quote

The RCV9 is built for high-volume automated strapping. For multi-unit orders, integration questions, or facility setup, request a quote using the button under Add to cart rather than checking out online — we'll confirm pricing, lead time and liftgate delivery first.

Which Model Fits You

Model Type Strap Material Strap Width Tension Range Best For
RCV2 Handheld electric PET / PP 1/4"–5/8" (7–16mm) 100–1,011 lbs (450–4,500N) Mobile use around the warehouse, mixed carton & pallet work
RCV3 Semi-automatic tabletop PP 1/4"–5/8" (6–16mm) 11–110 lbs Repetitive carton sealing at a fixed station
RCV9 (this machine) Automatic arch PP 3/8"–5/8" (10–16mm) 11–110 lbs High-volume lines, up to 24 cycles/min

Choose the RCV9 if you're strapping in volume on a fixed production or shipping line — its arch design and four activation modes (including a foot pedal and automatic ball switch) are built for speed and repetition, not portability. For mobile or lower-volume use, see the RCV2 or RCV3. The RCV9 ships by freight with liftgate delivery included, so no dock or forklift is needed.

Documentation

Download the RCV9 Use, Maintenance & Spare Parts Handbook (PDF) — covers safety instructions, installation, operation, adjustment, maintenance, and a full spare parts diagram.

Replacement Parts for This Machine

Dedicated spare parts for the RCV9 aren't listed individually yet — the handbook above includes full spare parts diagrams and part numbers. Contact our U.S. support team to order a specific part.
